1Overview
1.1Features
?High linear and ratiometric push-pull rail-to-rail output signal
?20-bit Digital Signal Processing
?Digital temperature compensation
?12-bit overall resolution
?Operates from -40°C up to 150°C
?Low drift of output signal over temperature and lifetime
?Programmable parameters stored in EEPROM with single bit error correction:
–magnetic range and magnetic sensitivity (gain)
–zero field voltage (offset)
–bandwidth
–polarity of the output slope
–clamping option
–temperature coefficient for all common magnets
–memory lock
?Re-programmable until memory lock
?Single supply voltage 4.5 - 5.5 V (4 - 7 V in extended range)
?Operation between -200 mT and +200 mT within three ranges

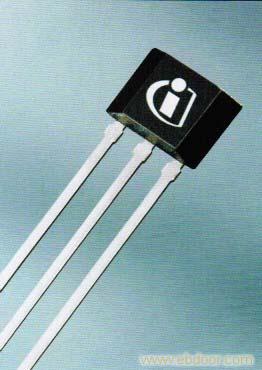

?Slim 3-pin package (Green)
?Reverse polarity and overvoltage protection for all pins
?Output short circuit protection
?On-board diagnostics (wire breakage detection, undervoltage, overvoltage)
?Digital readout of internal temperature and magnetic field values in calibration mode.
?Individual programming and operation of multiple sensors with common power supply
?Two-point calibration of magnetic transfer function
?Precise calibration without iteration steps
?High immunity against mechanical stress, EMC, ESD

1.2Target Applications
?Robust replacement of potentiometers
–No mechanical abrasion
–Resistant to humidity, temperature, pollution and vibration
?Linear and angular position sensing in automotive applications like pedal position, suspension control, valve or throttle position, headlight levelling and steering angle
?High current sensing for battery management, motor control, and electronic fuse
1.3Pin Configuration
Figure 1 shows the location of the Hall element in the chip and the distance between the Hall probe and the surface of the package.
