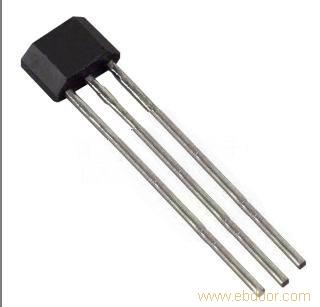

SS40 Series Bipolar Hall-Effect Digital Position Sensor; radial lead IC package
Actual product appearance may vary.

Features Small size Reverse power polarity protection Current sinking output Sensitive magnetic characteristics Operating speed from 0 kHz to over 100 kHz   Product Specifications Product Type Hall-Effect Digital Position Sensor Package Quantity/Type Available in 1,000/Bag Package Style Radial Lead IC Supply Voltage 4.5 Vdc to 24.0 Vdc Output Type Sink Magnetic Actuation Type Bipolar Operating Temperature Range -55 °C to 150°C [-67 °F to 302 °F] Output Voltage 0.15 Vdc typ./0.40 Vdc max. Switching Time Rise (10 % to 90 %) 1.5 μs max. Switching Time Fall (90 % to 10 %) 1.0 μs max. Availability Global Supply Current (max. @ 25 °C) 15 mA Output Current (max.) 20 mA Operate Point @ 25 °C 4.0 mT [40 G] typ. Release Point @ 25 °C -4.0 mT [-40 G] typ. Leakage Current max. 10 μA Differential 8.0 mT [80 G] typ. Series Name SS40
